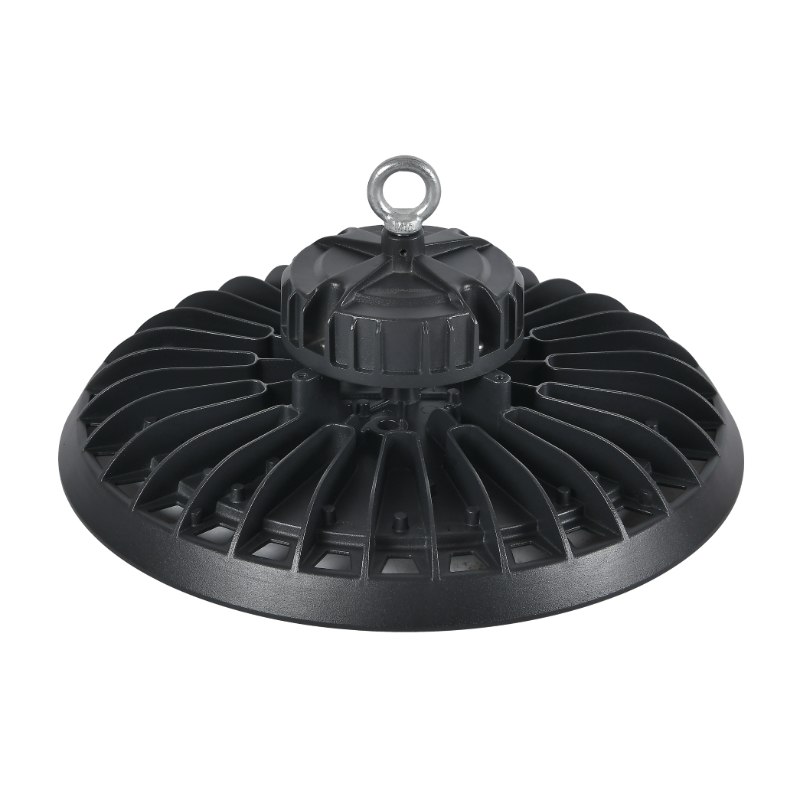

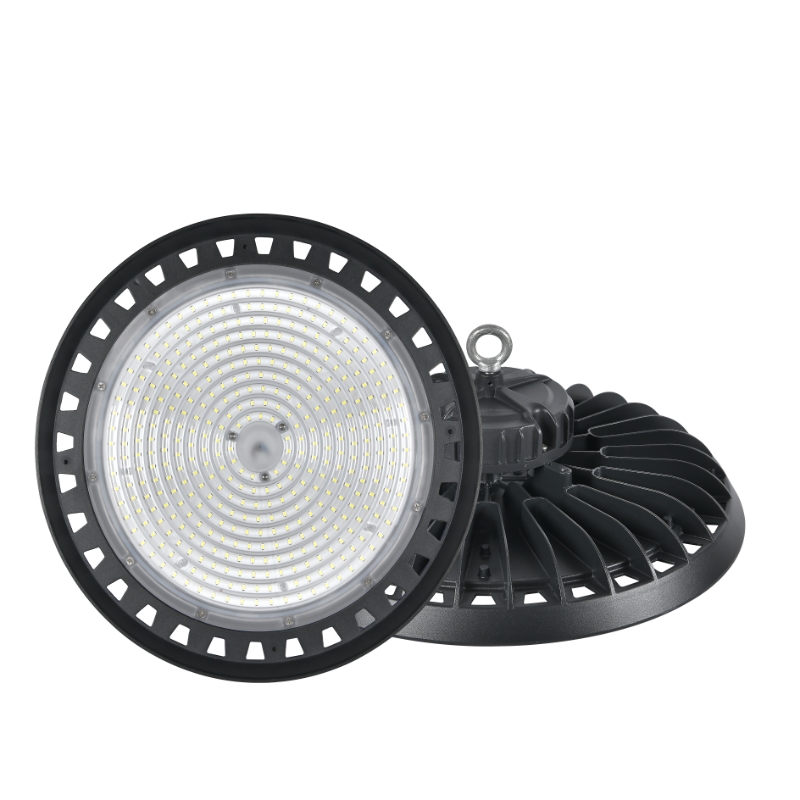

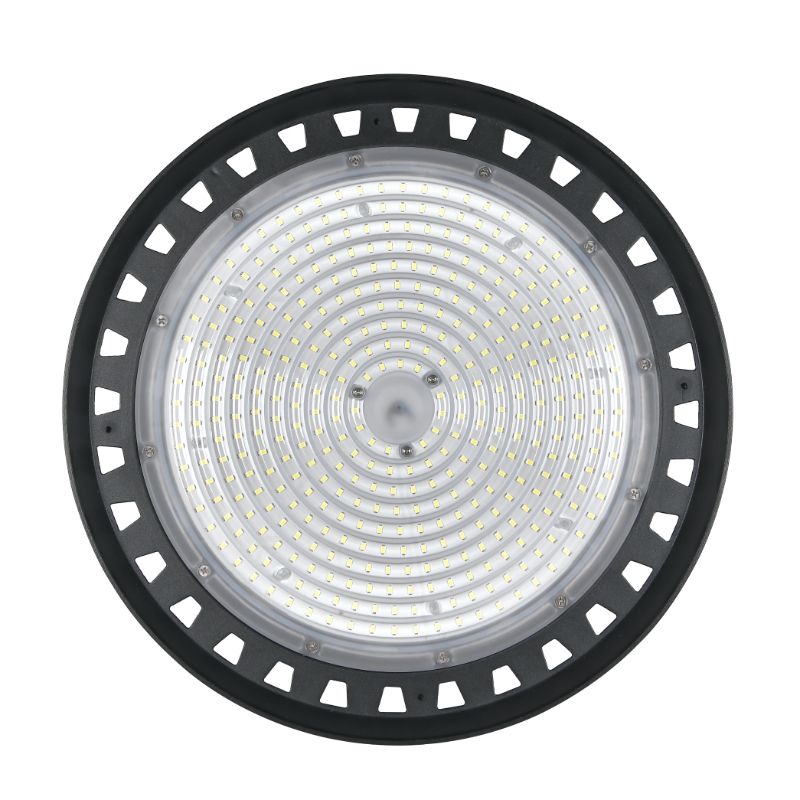

HYFD5 Ring lens
Product introduction
power range
HYFD5-60W
HYFD5-100W
HYFD5-150W
HYFD5-200W
HYFD5-240W
HYFD5-300W
Products
From the professional concept-to the religious techniques
power range
HYFD5-60W
HYFD5-100W
HYFD5-150W
HYFD5-200W
HYFD5-240W
HYFD5-300W
Technical data
No. | 參數名稱 Name of parameter | 規格型號及參數表（帶驅動） Specifications Model parameter specifications（with Driver） | ||||||
1 | 型號Type | FD5-60W | FD5-100W | FD5-150W | FD5-200W | FD5-240W | FD5-300W | |
2 | 功率Rated power | 60W | 100W | 150W | 200W | 240W | 300W | |
3 | 電壓范圍Allowable operating voltage range | AC150-260V | AC150-260V | AC150-260V | AC150-260V | AC150-260V | AC150-260V | |
4 | 燈具效率 Luminaire efficiency | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | |
5 | 功率因數 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | |
6 | 總諧波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | |
7 | 耐壓Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | |
8 | 角度Distribution Angle | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | Optional |
9 | 顯色指數CRI(color rendering index)Ra | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | Optional |
10 | 色溫Color temperatureCCT | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | Optional |
11 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | Optional |
12 | 環境溫度Operating ambient temperature | -20~40° C | -20~40° C | -20~40° C | -20~40° C | -20~40° C | -20~40° C | |
13 | 壽命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | |
14 | 浪涌Lightning and surge protection rating | ≥6K | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | |
15 | 防護等級IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | |
