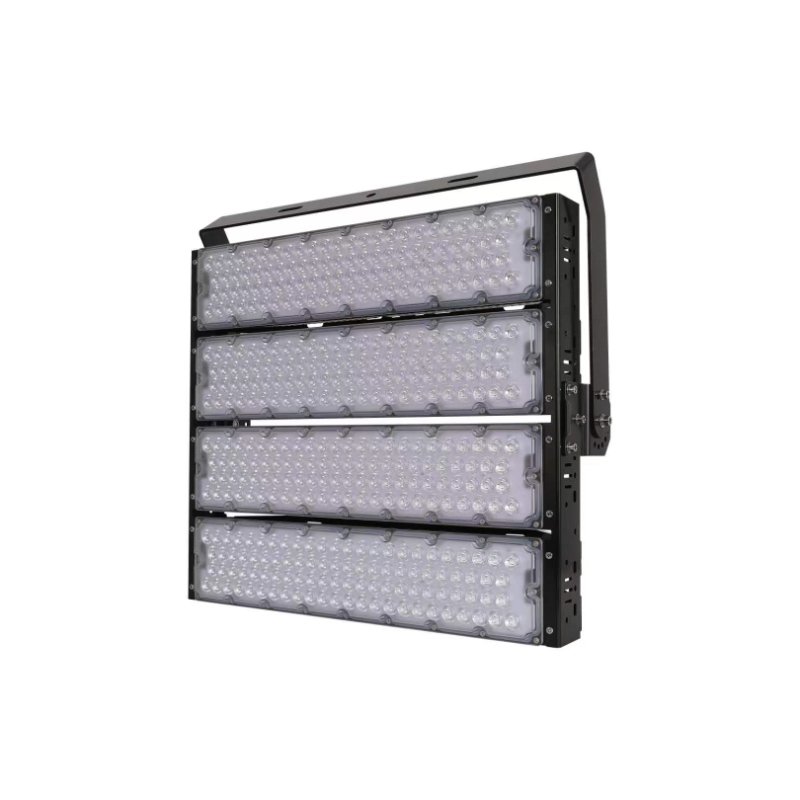

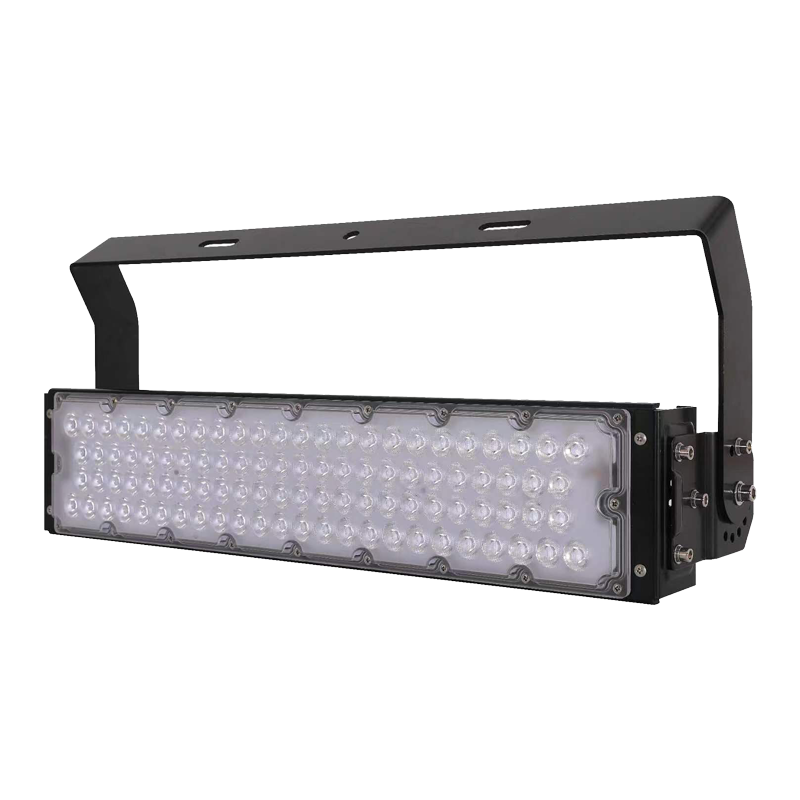

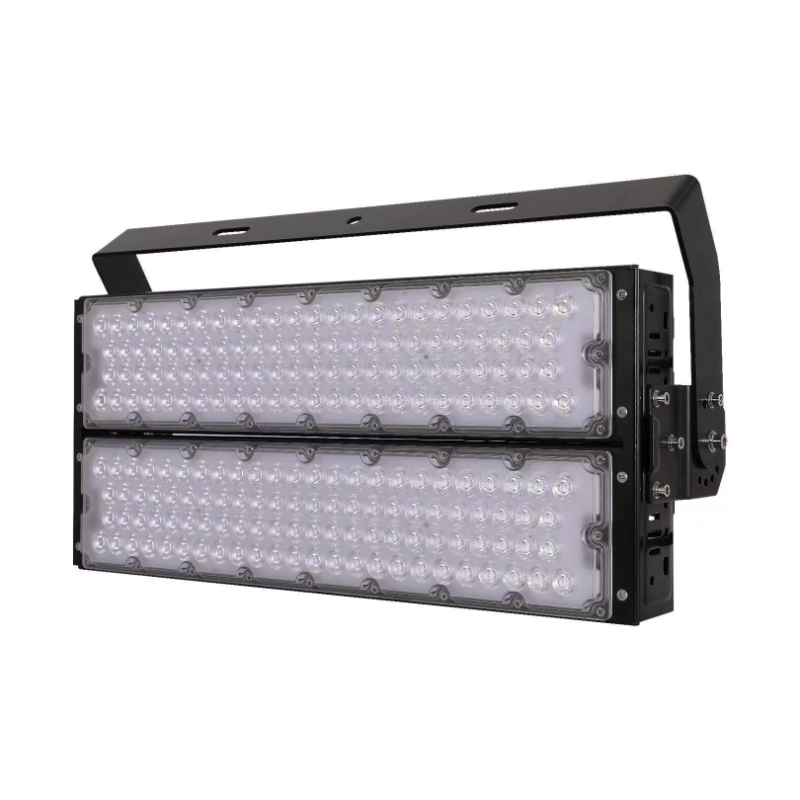

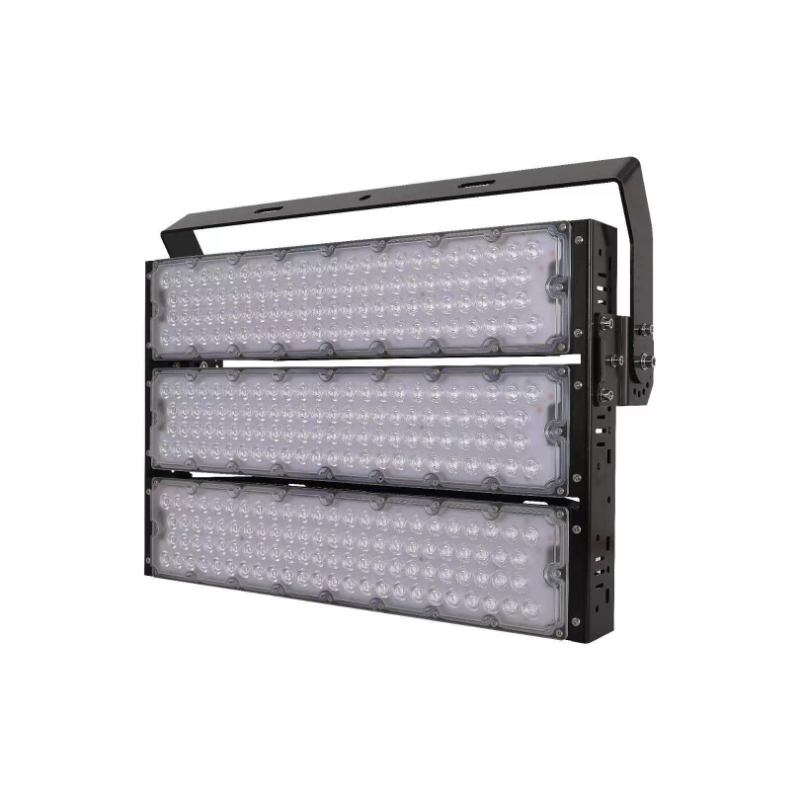

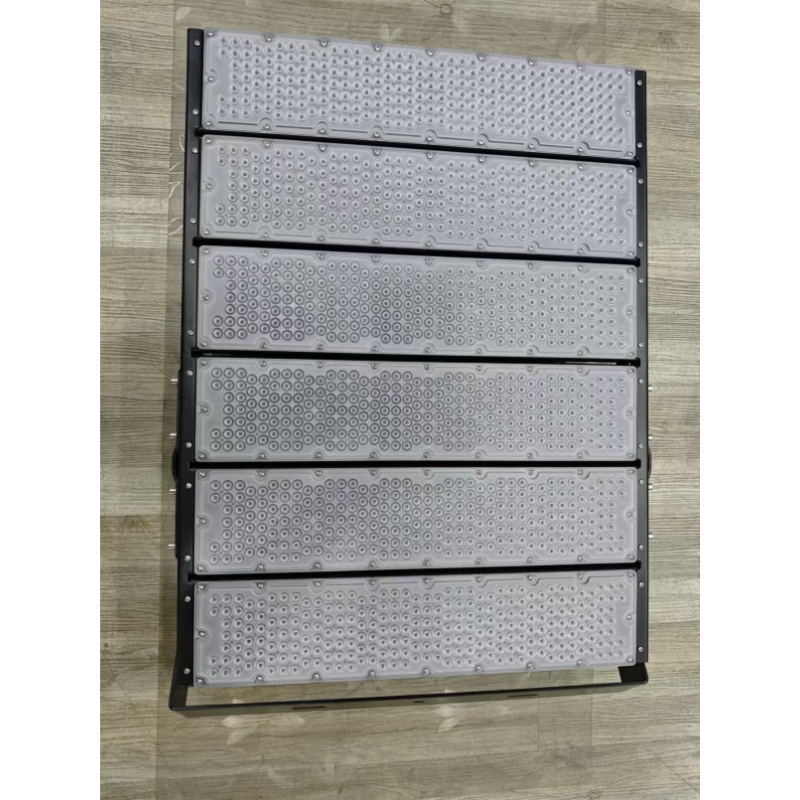

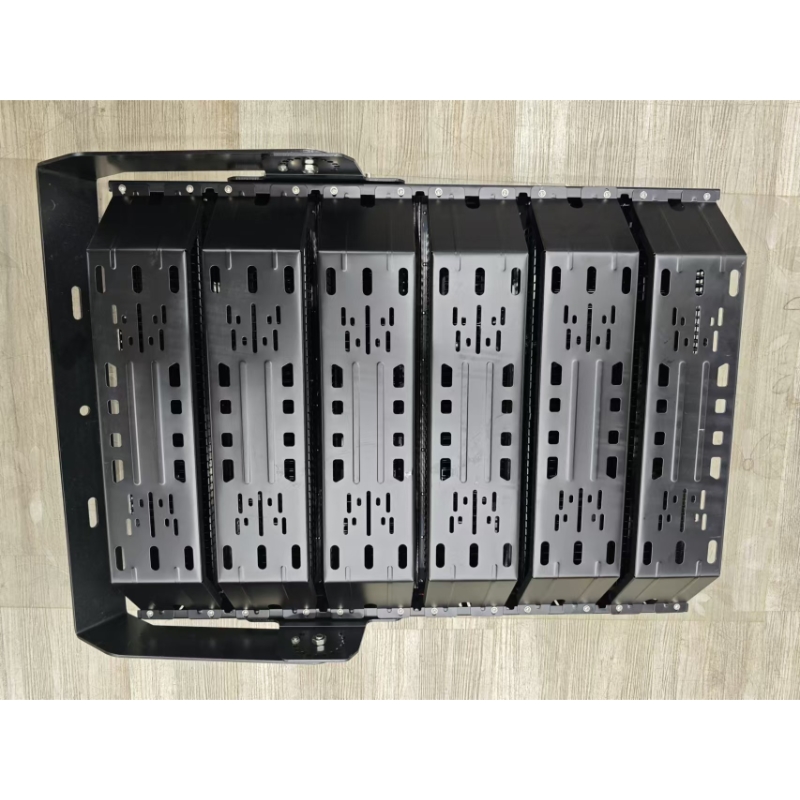

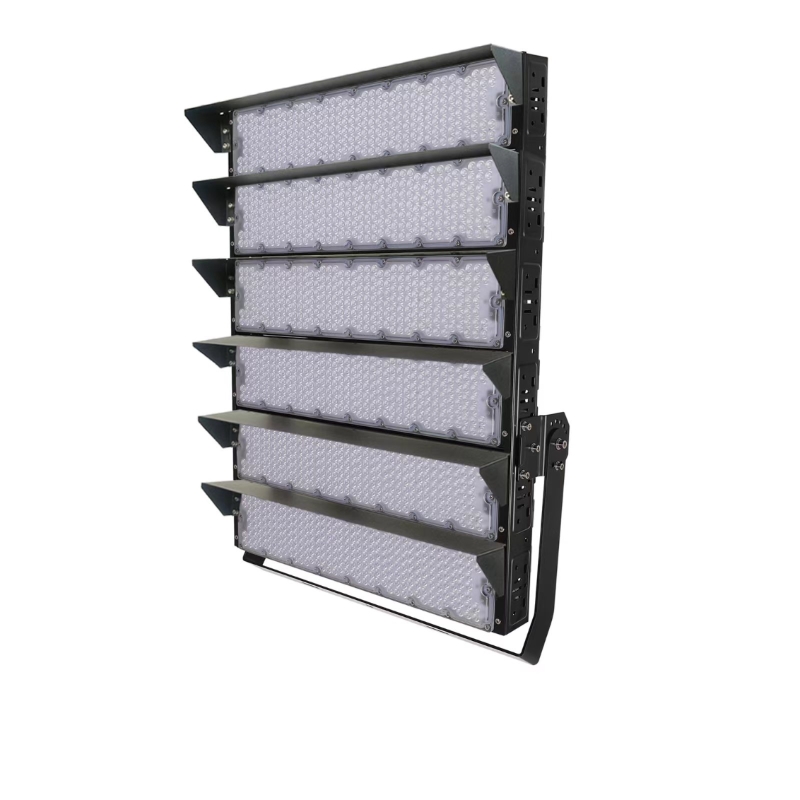

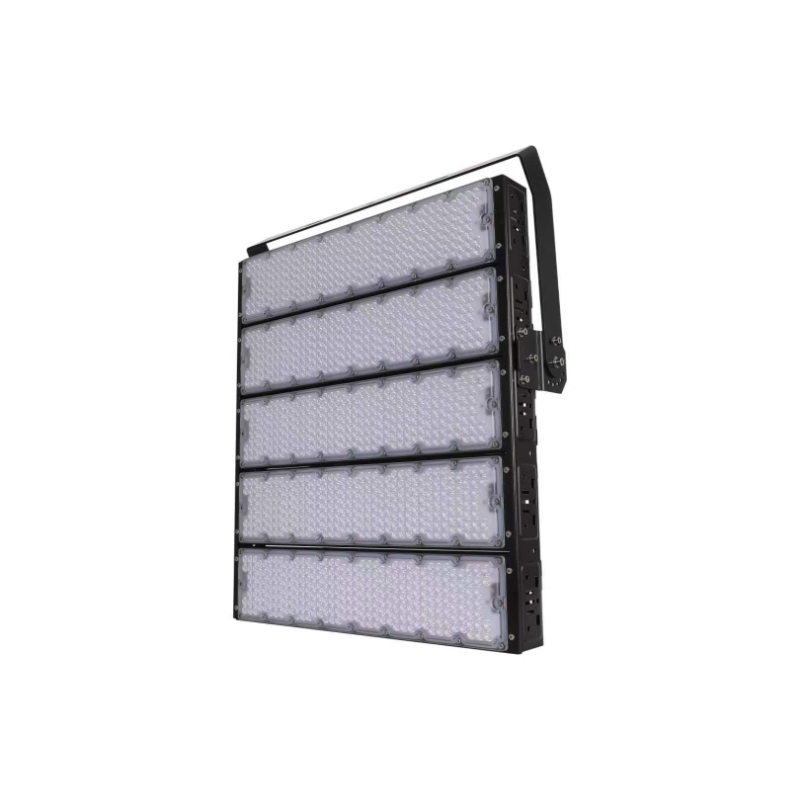

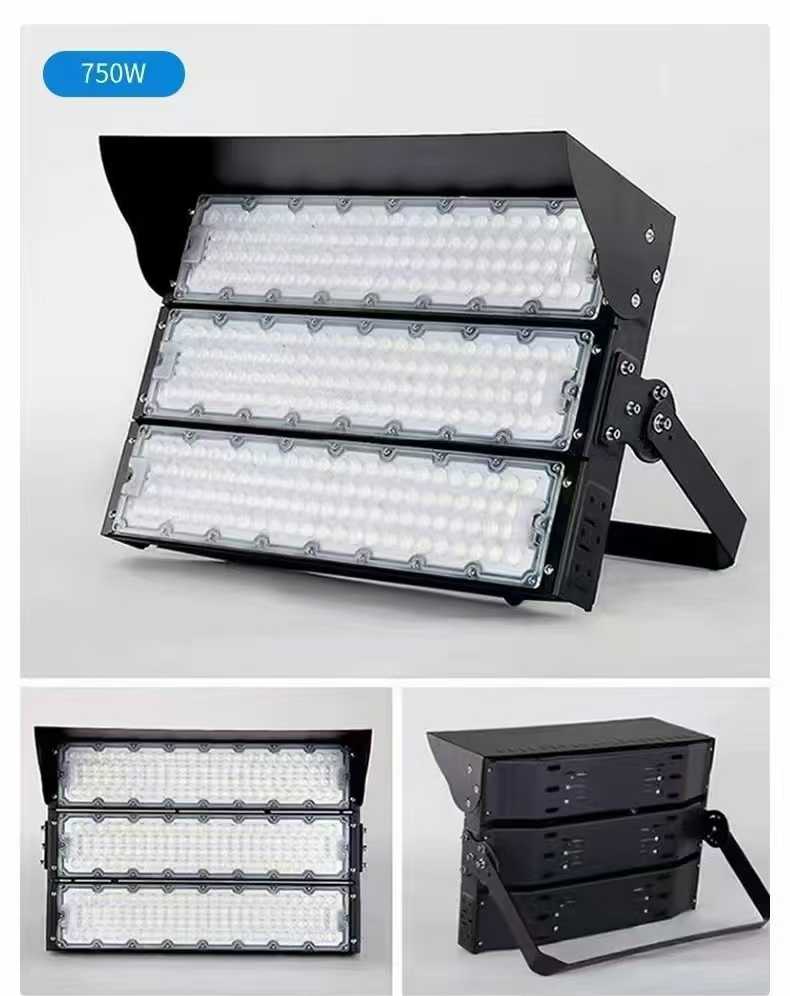

HYQCB系列投光燈
產品介紹
功率范圍
RJ-HYQCB-200W-1
HYQCB-400W-2
HYQCB-600W-3
HYQCB-800W-4
HYQCB-1000W-5
產品中心
經典設計出發，提供適合的產品
技術參數表
No. | 參數名稱Nameofparameter | 規格型號及參數表Specification model and technical data | |||||||
1 | 型號Type | QCB-200W | QCB-400W | QCB-600W | QCB-720W | QCB-800W | QCB-1000W | QCB-1200W | QCB-1500W |
2 | 功率Rated power | 200W | 400W | 600W | 720W | 800W | 1000W | 1200W | 1500W |
3 | 電壓范圍Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
4 | 功率因數 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
5 | 總諧波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
6 | 耐壓Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
7 | 角度Distribution Angle | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° |
8 | 顯色指數CRI(color rendering index)Ra | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 |
9 | 色溫Color temperatureCCT | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
10 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 |
11 | 環境溫度Operating ambient temperature | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C |
12 | 壽命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
13 | 防雷保護 Lightning and surge protection rating | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
14 | 防護等級IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
